Technical Specifications |
|
|
Model: |
VCX 500 |
|
Frequency: |
20KHz |
|
Power: |
500W |
|
Inverter Model: |
CV18 |
|
Standard Amplitude Bar: |
Φ13mm |
|
Standard Amplitude Bar Length: |
136mm |
|
Overall Dimension of Amplitude Bar: |
235 x 190 x 340 mm |
|
Amplitude Bar Material: |
Titanium alloy Ti-6Al-4V |
|
Standard Amplitude Bar Processing Capacity: |
50ml to 250ml |
|
Optional Amplitude Bars: |
Φ2mm, Φ6mm, Φ13mm |
| Weight of the amplitude bar: |
900g |
| Length of the amplitude bar cable: |
1.5m |
| Duty cycle: |
1-99% |
| Power adjustment range: |
Continuously adjustable (20-500w) |
| Interval time: |
0.1-99.9s |
| Temperature protection setting: |
Available, energy and temperature setpoint control (temperature probe needs to be added) |

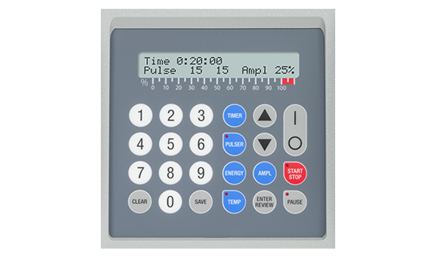

| Power amplitude display: |
Available |
| Working frequency range: |
Digital wattmeter of energy monitor, automatic tuning and automatic amplitude compensation |
| Working time: |
Microprocessor-based programmable 10-hour timer, 1-59 seconds independent/on-off pulse |
| Ultrasonic time: |
From 1 second to 10 hours |
| Working mode: |
Interval/continuous |
| Power supply: |
220/110V 50Hz/60Hz or, unless otherwise specified, the power requirements are sent at 117V, 50/60Hz |
| Net weight: |
6.8kg |
| Main unit + transducer weight: |
3680g |
