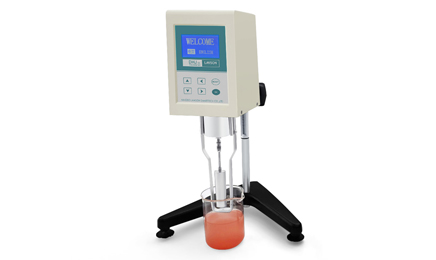

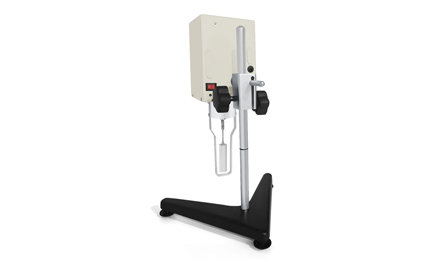

DHJ-5S Rotary Viscometer has the characteristics of high measurement sensitivity, reliable test results, easy operation, and elegant appearance. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used in the measurement of viscosity of various substances such as oils, paints, plastics, medicines, jewelry, coatings, and detergents.
Product Introduction
DHJ-5S rotational viscometer has the characteristics of high measurement sensitivity, reliable test results, easy operation, and elegant appearance. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used in the measurement of viscosity of various substances such as oils, paints, plastics, medicines, jewelry, coatings, and detergents.


Product Features
Rotary Viscometer is a rotary viscometer, driven by a motor through a variable speed belt to rotate the rotor at a constant speed. When the rotor rotates in the liquid, the greater the viscosity of the liquid acting on the rotor, the greater the viscous torque; conversely, the smaller the viscosity of the liquid, the smaller the viscous torque. The viscous torque acting on the rotor is detected by a sensor and the viscosity of the measured liquid is obtained by computer processing.
Rotary Viscometer uses microcomputer technology, which can easily set the range (rotor number and speed), digitally process the data detected by the sensor, and display the rotor number, speed, viscosity value of the measured liquid, and its full-range percentage value on the display screen.
DHJ-5S is equipped with four rotors (No.1, 2, 3, 4) and four speed levels (6, 12, 30, 60 rpm), which can be combined into 16 combinations to measure the viscosity of various liquids within the measurement range.


Technical Parameters
Model: DHJ-5S
Measurement range: 1 ~1×105mPa.s

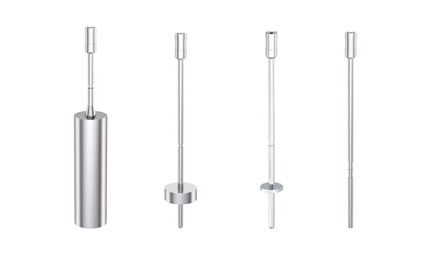

Rotor specifications: Rotor 1-4; 0 rotor is optional for measuring low viscosity down to 0.1mPa.s
Rotor speed: 3, 6, 12, 30, 60 rpm
Automatic mode: Automatically selects the appropriate rotor number and speed
Operating interface language: Chinese/English
Stable reading cursor: The vertical block cursor displays a stable reading when it is full
Measurement accuracy: ±2% (Newtonian fluid)
Power supply: AC 220V±10%, 50Hz±10%
Operating environment: Temperature 5℃~35℃, relative humidity not greater than 80%
Dimensions: 370*325*280mm
Net weight: 6.8kg




Single Page - Color Page
Name: Author: Action:
Viscometer       DHJ-5S Viscometer Download







Product List
DHJ-5S Unit
Host Machine Unit
Rotor 1-4 set
Rotor 0 set
Base unit
Protective cover unit
Lifting column set
A pair of pliers (one large and one small) set
Hexagonal socket head piece
Power adapter set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
Optional
1
1
1
2
1
1
1
1
1
